Remote Sources

← Home

dirplot can scan directory trees on remote sources without copying files locally. Remote backends are optional dependencies — see Installation for what to install per backend.

Warning: Remote trees can contain hundreds of thousands of files. Use --depth N to limit how far down the tree dirplot recurses until you have a feel for the size of the target. Start with --depth 3.

Tip: If one large file dominates the layout and squashes everything else into tiny slivers, add --log-scale 4 to compress the size range. Values in the range 2–10 are most useful.

Remote Servers via SSH

Scan hosts reachable over SSH using paramiko.

pip install "dirplot[ssh]"

Usage

# ssh://user@host/path format
dirplot map ssh://alice@prod.example.com/var/www

# SCP-style user@host:/path format
dirplot map alice@prod.example.com:/var/www

# Exclude paths, cap depth, save to file
dirplot map ssh://alice@prod.example.com/var --exclude /var/cache --depth 4 --output remote.png --no-show

Authentication

Credentials are resolved in this order:

  1. --ssh-key PATH — explicit private key file
  2. IdentityFile from ~/.ssh/config for the target host
  3. ssh-agent (picked up automatically)
  4. --ssh-password-file FILE — file containing the SSH password
  5. Interactive password prompt as a last resort

SSH config

~/.ssh/config is read automatically. Host aliases, custom ports, and IdentityFile directives all work as expected:

Host prod
    HostName prod.example.com
    User alice
    IdentityFile ~/.ssh/prod_key
    Port 2222

dirplot map ssh://prod/var/www   # resolves using the config block above

Options

Flag Default Description
--ssh-key standard SSH key paths Path to SSH private key
--ssh-password-file — File containing SSH password
--depth unlimited Maximum recursion depth

AWS S3

Scan S3 buckets using boto3. File sizes come from S3 object metadata — no data is downloaded.

pip install "dirplot[s3]"

Usage

# Scan a bucket prefix
dirplot map s3://my-bucket/path/to/prefix

# Scan an entire bucket
dirplot map s3://my-bucket

# Public bucket (no AWS credentials needed)
dirplot map s3://noaa-ghcn-pds --no-sign

# Use a named AWS profile, cap depth, save to file
dirplot map s3://my-bucket/data --aws-profile prod --depth 3 --output s3.png --no-show

Authentication

boto3's standard credential chain is used automatically — no extra configuration needed if your environment is already set up for AWS. Credentials are resolved in this order:

  1. --aws-profile (or AWS_PROFILE env var) — named profile from ~/.aws/config
  2. AWS_ACCESS_KEY_ID / AWS_SECRET_ACCESS_KEY environment variables
  3. ~/.aws/credentials file
  4. IAM instance role (on EC2 / ECS / Lambda)
  5. --no-sign — skip signing entirely for anonymous access to public buckets

--aws-profile takes precedence over AWS_PROFILE and all lower-priority methods in the chain.

Options

Flag Default Description
--aws-profile AWS_PROFILE env var Named AWS profile
--no-sign off Anonymous access for public buckets
--depth unlimited Maximum recursion depth
--exclude — Full s3://bucket/key URI to skip (repeatable)

Public buckets to explore

These buckets are publicly accessible with --no-sign. Use --depth 2 or --depth 3 on large buckets to avoid long scan times.

Bucket Contents Quick start
s3://noaa-ghcn-pds NOAA Global Historical Climatology Network dirplot map s3://noaa-ghcn-pds --no-sign --depth 2
s3://noaa-goes16 NOAA GOES-16 weather satellite imagery dirplot map s3://noaa-goes16 --no-sign --depth 3
s3://sentinel-s2-l1c Copernicus Sentinel-2 satellite data (eu-central-1) dirplot map s3://sentinel-s2-l1c --no-sign --depth 2
s3://1000genomes 1000 Genomes Project dirplot map s3://1000genomes --no-sign --depth 3

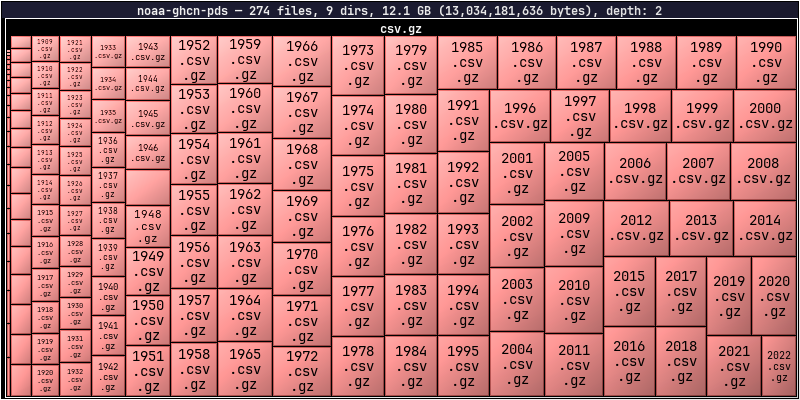

NOAA GHCN S3 bucket treemap
dirplot map s3://noaa-ghcn-pds --no-sign --depth 2

GitHub Repositories

Scan any GitHub repository using the Git trees API. File sizes come from blob metadata — no file content is downloaded. No extra dependency is required; dirplot uses urllib from the Python standard library.

Usage

# github:// scheme
dirplot map github://owner/repo

# Specific branch, tag, or commit SHA
dirplot map github://owner/repo@dev

# Full GitHub URL (also accepted)
dirplot map https://github.com/owner/repo/tree/main

Authentication

A token is not required for public repositories under normal use. Each scan makes 1–2 API calls, and GitHub allows 60 unauthenticated requests per hour per IP. A token is needed when:

  • Scanning private repositories
  • Running in CI/CD where many processes share the same IP
  • Scanning repeatedly and hitting the unauthenticated rate limit

Option 1 — gh CLI (easiest): authenticate once and dirplot picks up your credentials automatically:

gh auth login
dirplot map github://my-org/private-repo

Option 2 — environment variable:

export GITHUB_TOKEN=ghp_…
dirplot map github://my-org/private-repo

Option 3 — token file:

dirplot map github://my-org/private-repo --github-token-file ~/.github-token

Token resolution order: --github-token-file → $GITHUB_TOKEN → gh auth token.

Options

Flag Default Description
--github-token-file $GITHUB_TOKEN File containing personal access token
--depth unlimited Maximum recursion depth
--exclude — Repo-relative path to skip (repeatable)

Notes

  • Dotfiles and dot-directories (.github, .env, etc.) are skipped, consistent with local scanning behaviour.
  • If the repository tree exceeds GitHub's API limit (~100k entries), the response will be truncated. dirplot prints a warning and renders what was returned. Use --depth to avoid this.
  • The --depth flag here applies to the in-memory tree built from the API response, not to the number of API calls (the full flat tree is always fetched in one request).

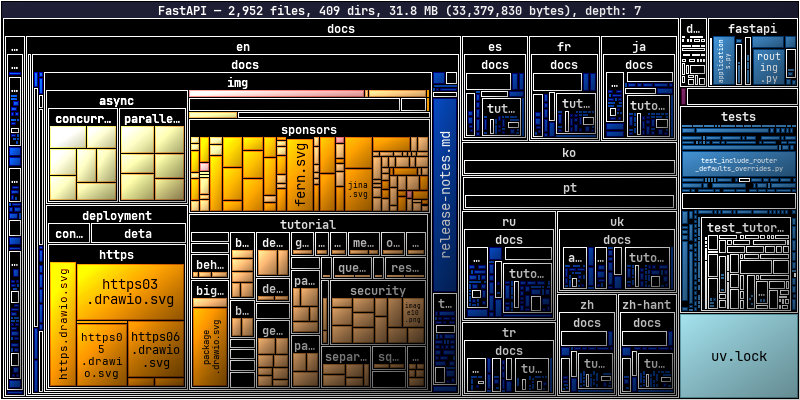

FastAPI repository treemap
dirplot map github://tiangolo/fastapi

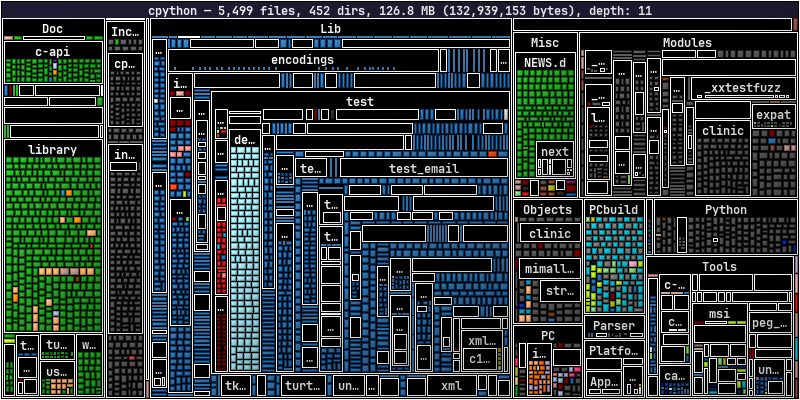

CPython repository treemap
dirplot map github://python/cpython

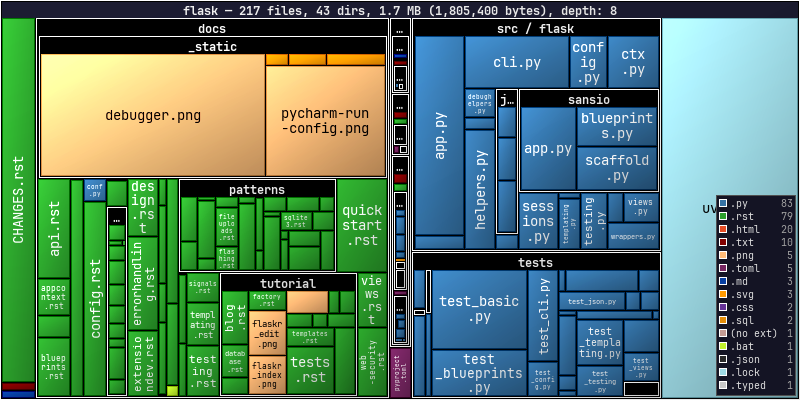

Flask repository treemap
dirplot map github://pallets/flask --legend

Google Drive

Scan a Google Drive using the gog CLI — a unified Google Workspace CLI that handles OAuth2 authentication. No extra Python dependency is needed; dirplot shells out to gog the same way the Docker backend uses docker exec.

Setup

# Install gog
brew install gogcli   # macOS

# Authenticate once (opens browser for OAuth2)
gog auth

Usage

# Scan your entire Drive (My Drive + shared drives)
dirplot map gdrive://

# Scan with depth limit (recommended for large drives)
dirplot map gdrive:// --depth 3

# Scan a specific folder by its Drive folder ID
dirplot map gdrive://1BxiMVs0XRA5nFMdKvBdBZjgmUUqptlbs74OgVE2upms

# Display inline in terminal
dirplot map gdrive:// --depth 3 --log-scale 4 --inline

To find a folder ID: open the folder in Google Drive in your browser — the ID is the long string at the end of the URL (https://drive.google.com/drive/folders/<FOLDER_ID>).

Notes

  • Google-native formats (Docs, Sheets, Slides, Forms, …) have no byte size in the Drive API. dirplot shows them as 1 byte so they remain visible as tiles rather than disappearing.
  • Authentication is handled entirely by gog. Run gog auth once; tokens are cached and refreshed automatically.
  • Large drives can contain tens of thousands of files. Use --depth N to limit the scan until you have a feel for the size.
  • Dotfiles and dot-directories are skipped, consistent with local scanning behaviour.

Options

Flag Default Description
--depth unlimited Maximum recursion depth
--exclude — Path pattern to skip (repeatable)
--log-scale 0 (off) Useful when a few large files dominate the layout

Docker Containers

Scan a running Docker container's filesystem using docker exec. No extra dependency is required beyond the docker CLI being in PATH.

Usage

# docker://container/path — slash separator
dirplot map docker://my-container/app

# docker://container:/path — colon separator (both forms accepted)
dirplot map docker://my-container:/app

# Real example
docker run -d --name pg-demo -e POSTGRES_PASSWORD=x postgres:17-alpine
dirplot map docker://pg-demo:/usr --inline
docker rm -f pg-demo

Requirements

  • docker CLI in PATH
  • The container must be running (docker ps should list it)
  • The container image must have a find binary (true for all common Linux base images)

Notes

  • Symlinks are skipped.
  • Dotfiles and dot-directories are skipped, consistent with local scanning behaviour.
  • find is first attempted with GNU find's -printf for efficiency; if that fails (BusyBox/Alpine images), a POSIX sh + stat fallback is used automatically.

Options

Flag Default Description
--depth unlimited Maximum recursion depth
--exclude — Absolute path inside the container to skip (repeatable)

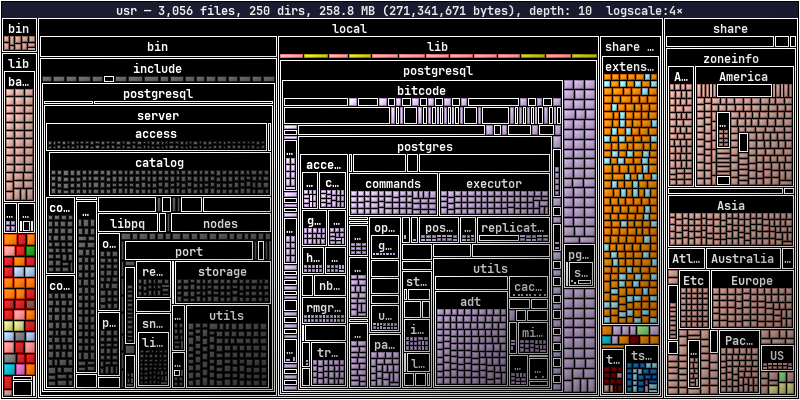

Postgres container /usr treemap
dirplot map docker://pg-demo:/usr --log-scale 4

Kubernetes Pods

Scan a running Kubernetes pod's filesystem using kubectl exec. No extra dependency is required beyond kubectl being in PATH and configured to reach a cluster.

Usage

# Default namespace
dirplot map pod://my-pod:/app

# Explicit namespace via URL or flag
dirplot map pod://my-pod@staging:/app
dirplot map pod://my-pod:/app --k8s-namespace staging

# Multi-container pod — pick a specific container
dirplot map pod://my-pod:/app --k8s-container sidecar

# Real example (minikube)
minikube start
kubectl run pg-demo --image=postgres:17-alpine --restart=Never --env POSTGRES_PASSWORD=x
kubectl wait --for=condition=Ready pod/pg-demo --timeout=90s
dirplot map pod://pg-demo/var/lib/postgresql --inline
kubectl delete pod pg-demo --grace-period=0

Requirements

  • kubectl CLI in PATH, configured for a reachable cluster
  • The pod must be in Running state
  • The pod image must have a find binary (true for all common Linux base images)

Notes

  • Symlinks are skipped.
  • Dotfiles and dot-directories are skipped, consistent with local scanning behaviour.
  • Unlike Docker scanning, -xdev is intentionally omitted so that mounted volumes (emptyDir, PVC, etc.) within the scanned path are traversed — this is the common case in k8s where images declare VOLUME entries that k8s always mounts separately.
  • find is first attempted with GNU find's -printf; if that fails (BusyBox/Alpine images), a POSIX sh + stat fallback is used automatically.

Options

Flag Default Description
--k8s-namespace current context default Kubernetes namespace
--k8s-container pod default Container name for multi-container pods
--depth unlimited Maximum recursion depth
--exclude — Absolute path inside the pod to skip (repeatable)

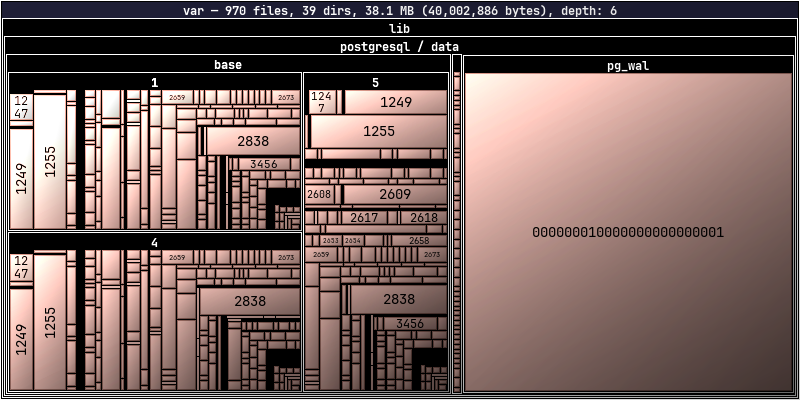

Postgres pod /var treemap
dirplot map pod://pg-demo/var/
